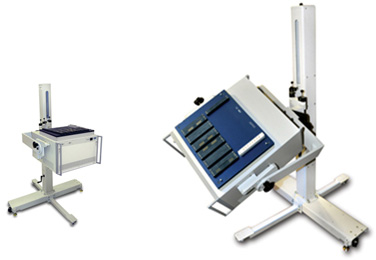

The TS-900 Semiconductor Test System is now available with a new manipulator option and handler compatible receiver. The Reid-Ashman OM1069 manipulator is designed specifically for the TS-900 and allows precise positioning and flexibility for interfacing to automated probers and device handlers. The manipulator's spring loaded design allows for easy alignment and docking to handlers – eliminating the need for a complex receiver interface.
The TS-900's new handler compatible receiver offers the flexibility to interface to virtually any device handler. In addition, compatibility is maintained with the TS-900's current receiver, allowing users to interchange load boards between the screw down and slide receiver configurations.
| |
Visit us at Semicon West to see how Geotest’s PXI-based TS-900 can offer a cost effective test solution for verification, characterization, failure analysis, pilot production, and focused production test applications. With a wide range of test capabilities for component, SoC and SiP test applications and supporting up to 512, 100 MHz channels with per-pin PMUs, the TS-900 includes a full-featured set of hardware and software capabilities for digital, mixed – signal and RF test applications.
Click here to learn more about the TS-900
Semicon West - July 10-12, 2012 San Francisco, California Booth 6444 Click here for your complimentary exposition pass.
|
Using the GX5295's Level Comparators for Fast Go/No- Go Device Testing
IntroductionIn the semiconductor production test world, test time or test throughput is a key attribute for any test system or test solution. Test engineers are constantly faced with providing fast but adequate testing of devices once they enter production test. The underlying assumption is that the production tests "adequately" evaluate the operation and functionality of the UUT. Special emphasis is given to the word "
adequate" because unlike the comprehensive functional and characterization tests that are done for design verification, production testing involves performing a subset of these tests. Once a design has been verified, it is usually not necessary to functionally test every aspect of each device, or fully characterize the AC and/or DC parameters of each device during the production test cycle. An adequate subset of the functional and parametric tests is selected such that, if the UUT passes these tests, you have high confidence that the component will function correctly in its intended application.
Limit TestingBy limiting the number and scope of the tests performed, test time can be significantly reduced. And, as "time is money", reducing test time can save money, improve test system utilization, and directly impact the profitability of the overall business. However, limiting the number and scope of tests performed during production is not the only way to reduce test time. Limit testing can also be an effective time saver that will improve test time and yield without sacrificing quality. Limit testing is the practice of testing only to a minimum or maximum value to validate device parameters. For example, if a device is specified to provide a minimum 2.5V output under a specified load, it is not necessary to test the device to 2.6V. Nor is it necessary to actually measure the output voltage. So long as the device meets the minimum output threshold (or limit), it is considered within specification.
Testing to a specific limit or threshold, rather than measuring an actual value, can improve test time by utilizing comparators for the limit test, rather than making a measurement. The output of a comparator provides an instantaneous pass/fail indication of whether the parameter meets the minimum (or maximum) allowable value for the parameter being measured. A measurement is not only slower than using a comparator, but also requires that the measured value be evaluated against the pass/fail criteria. Typically this evaluation is performed in software, which is slower than a hardware comparison.
Limit Testing with the GX5295Geotest's GX5295 can perform both measurements and limit testing. It offers a full-function, Parametric Measurement Unit (PMU) per pin which is capable of forcing voltage or current, and measuring current or voltage, respectively. It also provides a dual-threshold comparator for each pin with programmable minimum and maximum thresholds which can be used to validate whether or not a DC parameter meets an acceptable limit. By providing a dual-threshold comparator per pin, the GX5295 can be programmed with a unique minimum AND maximum limit for EACH pin, and then simply selecting for each pin which comparator output is used for a limit test. The output of the comparator is binary, "0" or "1", "pass" or "fail", "good" or "bad". No measurement is performed and no evaluation of the measured value is needed. Compliance for the measured parameter is known immediately. Additionally, the comparators can operate at the GX5295's maximum vector rate, minimizing the impact on throughput.

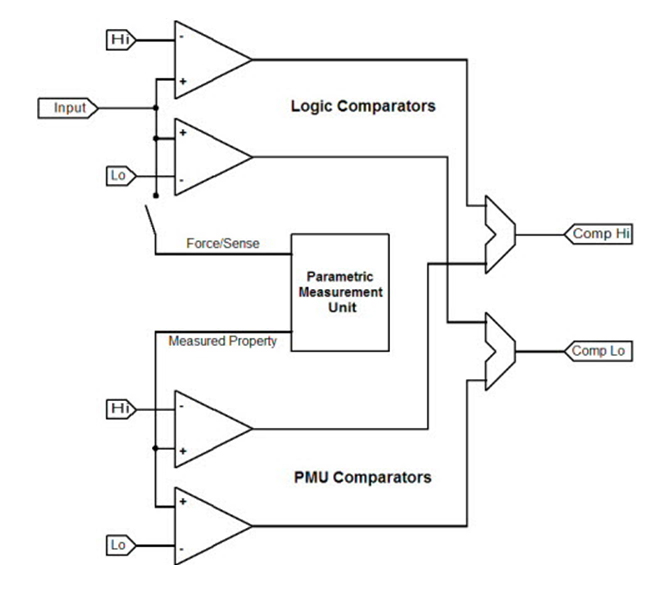

A block diagram for one GX5295 channel input is shown below. Each channel can be independently configured to operate in Digital I/O mode (DIO) or Parametric Measurement Unit mode (PMU). The DIO mode is useful for performing standard digital functional test; supporting both Digital Stimulus/Response and Digital Real-Time compare. The PMU mode is useful for making DC measurements or validating DC limits.

In PMU mode, the GX5295 can force a voltage or a current on each channel, and then measure the respective current or voltage. The measured value can also be passed to the PMU comparators for limit testing. Since each channel has fully independent control for the programmed high and low limit values for its comparator, as well as the force value, a complete DC validation of all input pin thresholds and output pin levels can be performed in a single measurement cycle. For bidirectional channels, two cycles would be required. Features and specifications for the GX5295 PMU are provided in the Table below:
Parametric Measurement Unit (PMU) Specifications:Number of PMUs: | 32, one per data channel 4, one per auxiliary channel (for timing / control functions) |
Modes: | Force voltage, measure current Force current, measure voltage |
Force Voltage Range: | -2 volts to +7 volts |
Force Accuracy: | +/- 15 mV |
Force Voltage Resolution: | 16 bits |
Force Current Ranges: | +/- 32 mA FS, +/- 8 mA, +/- 2 mA, +/- 512 uA, +/- 128 uA, +/- 32 uA, +/- 8 uA, +/- 2 uA FS |
Force / Measure Current Accuracy: | Hi / Lo Current Limit Accuracy | Measure Current Accuracy | Current Range | +/- 128 uA | +/ - 64 uA | 32 mA | +/- 32 uA | +/- 16 uA | 8 mA | +/- 8 uA | +/- 4 uA | 2 mA | +/- 2 uA | +/- 1024 nA | 512 uA | +/- 500 nA | +/- 256 nA | 128 uA | +/- 128 nA | +/- 64 nA | 32 uA | +/- 32 nA | +/- 16 nA | 8 uA | +/- 20 nA | +/- 4 nA | 2 uA |
|
Measure Voltage Range: | -2 volts to +7 volts |
Measure Voltage Accuracy: | +/- 5 mV (measurement rate > 500 readings/sec +/- 1 mV (measurement rate < 200 readings / sec |
Hi / Lo Voltage Limit Accuracy | +/- 30 mV |
High & Low Voltage Clamps: | VCLo: -2 to +5 V VCHi: 0 to +7 V |
Voltage Clamp Accuracy: | +/- 100 mV |
The DLL API functions for utilizing the GX5295 PMU functions are listed below:DioGetChannelMode()
DioGetInputLoadCurrent()
DioGetInputLoadCommutatingVoltage()
DioGetInputLoadState()
DioMeasure()
DioPmuGetComparatorsSource()
DioPmuGetComparatorsStates()
DioPmuGetComparatorsValues()
DioPmuGetComparisonBooleanResult()
DioPmuGetComparisonResults()
DioPmuGetForcedCurrent()
DioPmuGetForcedCurrentCommutatingVoltage()
DioPmuGetForcedVoltage()
DioPmuSetupComparatorsSource()
DioPmuSetupComparatorsValues()
DioPmuSetupForcedCurrent()
DioPmuSetupForcedCurrentCommutatingVoltage()
DioPmuSetupForcedVoltage()
DioSetupChannelMode()
DioSetupInputLoadCurrent()
DioSetupInputLoadCommutatingVoltage()
DioSetupInputLoadState()

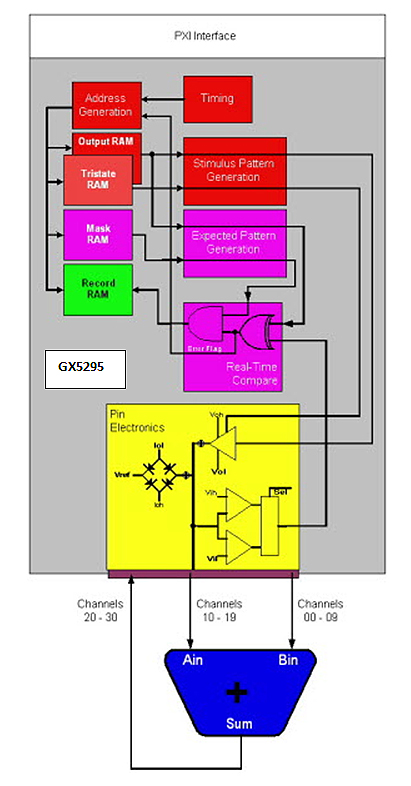

Example – Limit Testing Using the GX5295An example of a test setup and code for validating the output drive levels of a UUT is provided below. The UUT is a 10-bit full adder. There are 20 input signals mapped to GX5295 channels 0:19; Ain[0:9] and Bin[10:19]. There are 11 output signals, 10 bits for the sum and one bit for the carry. These signals are mapped to GX5295 channels 20:30.
The following test code example using ATEasy shows how to perform limit testing for validating the outputs of the UUT. Using the GX5295’s limit comparators, verifying that the outputs meet the minimum Hi level of 1.5 volts or the minimum Lo level of 0.5 volts simply requires reading the results contained in the adwHighStates and adwLowStates arrays.
Example: ATEasy Code for limit testing UUT outputs! Define DIO output as force voltage (drive UUT inputs)
Dio Setup Channels Mode PmuForceVoltageMode RangeOfChannels(nHandle,0,19)
! Set default voltage to 0V for DIO outputs - logic '0' for UUT Ain and Bin inputs
Dio Setup Channels PMU ForceVoltage RangeOfChannels(nHandle,0,19,0,1,0,1)
! Define DIO inputs as force current mode (load UUT outputs)
Dio Setup Channels Mode PmuForceCurrentMode RangeOfChannels(nHandle,20,30)
! Set force current to 1mA load using the 2mA range
Dio Setup Channels PMU ForceCurrent RangeOfChannels(nHandle,20,30,1,2)
! Set high/low commutating voltage to +3.5V and -1V, respectively
Dio Setup Channels PMU ForcedCurrentCommutatingVoltage RangeOfChannels(nHandle,20,30,3.5,-1)
! Set channels 20 - 30 for comparator mode (limit testing)
Dio Setup Channels PMU ComparatorsSource RangeOfChannels(nHandle,20,30,aPmuComparatorsSourceIoVoltage)
! Define High/Low input comparator limits to 1.5V/0.5V, respectively
Dio Setup Channels PMU ComparatorsValues RangeOfChannels(nHandle,20,30,1.5,0.5)
! Apply logic '0' (0V) to UUT Ain inputs (Bin is also '0') - force UUT sum outputs to '0'
Dio Setup Channels PMU ForceVoltage RangeOfChannels(nHandle,0,9,0,1,0,1)
! Return high/low comparator results in arrays adwHighStates and adwLowStates
Dio Get Channels PMU ComparatorsStates(nHandle,False,adwHighStates,adwLowStates)
! Apply logic '1' (3.0V) to UUT Ain inputs (Bin inputs are '0') - force UUT sum outputs to '1'
Dio Setup Channels PMU ForceVoltage RangeOfChannels(nHandle,0,9,3,1,0,1)
! Return high/low comparator results in arrays adwHighStates and adwLowStates
Dio Get Channels PMU ComparatorsStates(nHandle,False,adwHighStates,adwLowStates)
SummaryUsing comparator-based limit testing can substantially improve the test throughput for DC parametric device testing without sacrificing test quality or coverage. Click
here to learn more about the GX5295 or visit our
knowledge base library for more information about testing semiconductor devices.
