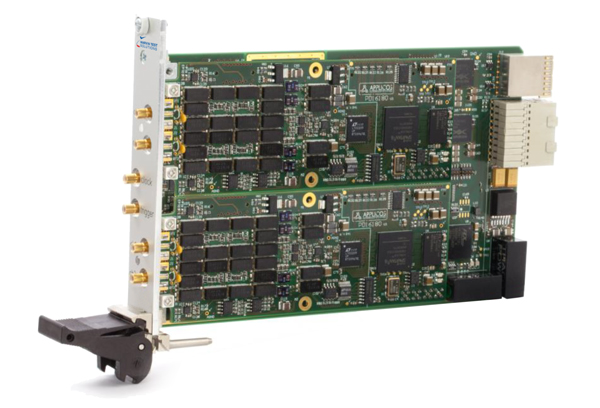

The GX2482e is a PXI express compatible, dual-channel, 16-bit digitizer. [1] It offers a high dynamic range and excellent SFDR. [1] It is suitable for applications such as aerospace, defense, automotive testing, high-performance baseband testing, medical device and module testing, and ATE systems. [1]
Here are some of its features:
Inputs: It has two differential inputs that can also be configured for single-ended operation. [1]
Input Impedance: Selectable for 1M ohm or 50 ohms and can be AC or DC coupled. [1]
Resolution: 16-bit. [1]
Sample Rate: Up to 180 MS/s. [1] The sample rate can be programmed from 1 MHz to 180 MHz. [1]
Memory: 64 M Sample memory depth per channel. [1]
Low Pass Filters: Each channel offers 3 selectable low pass filters. [1]
Clocking: It has a PLL clock generator with dedicated clock dividers for each channel, providing independent clocking and flexibility. [1]
Input range: 0.256 Vp to 15.36 Vp [1]
External Clock: The external clock connector is a front panel SMB with a 50 Ohm nominal input impedance. [1] The input frequency range is DC to 945 MHz for direct clocking, or 10 MHz as PLL reference. [1] The threshold level is 1.02 V, ±5% with a hysteresis of 60 mV, typical. [1]
Triggering: Triggering sources include the front panel, PXI trigger 0-7, PXI Star trigger, software trigger, and input signal. [1] Triggering modes are positive/negative level or edge, and positive/negative edge continuous. [1]
General specifications include:
Size: 3U, single slot. [1]
Weight: Approximately 0.55 lbs. [1]
Operating Temperature: 0 °C to +50 °C. [1]
Storage Temperature: 0 °C to +70 °C. [1]
Humidity: 10% to 80% (Non-Condensing). [1]
Current Consumption (Maximum): +5 V @ 2.3 A, +12 V @ 10 mA, -12 V @ 110 mA, +3.3 V @ 1.8 A. [1]
Accessories include:
GX92104 SMB Plug to BNC-M Cable, 36 inches (RG188 Cable). [1]GX92105 Dual SMB to BNC Cable, 12 inches. [1]GX92106 SMB Plug to SMA-M Cable, 24 inches (RG188 Cable). [1]
