Description

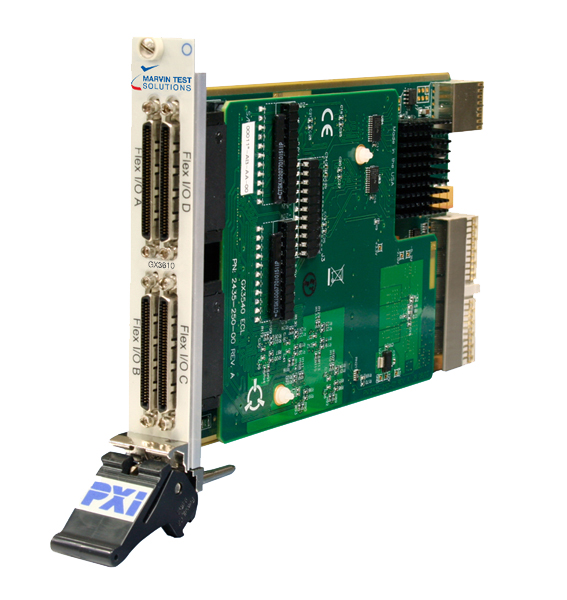

The GX3610 is a 3U PXI FPGA card with 80, mLVDS channels. The GX3610 is comprised of the GX3500 PXI FPGA card and the GX3510 expansion card providing 80 mLVDS buffered channels.
Programming and Software
The board is supplied with the GXFPGA library, a software package that includes a virtual instrument panel, and a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s current settings and status. In addition, interface files are provided to support access to programming tools and languages such as ATEasy, LabView, LabView/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. An On-Line help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- Automatic Test Equipment (ATE) and Functional Test
- Data Acquisition
- Process Control
- Factory Automation
GX3610 Specifications
| GX3500 FPGA Card with GX3510 mLVDS Expansion Board |
|---|
| Number of Channels | 80 I/O signals. Direction is configurable by software on a per pin basis |
| Logic Family | M - LVDS. Type 2 receiver |
| Data Rate | 200 Mbps (max) |
| Differential Output Voltage | 480 mV (min); 650 mV (max) |
| Differential Input Voltage Threshold | 150 mV (max), positive going input
50 mV (max), negative going input |
| Absolute Maximum Input Voltage Range | -1.8 V to 4 V |
| Power on State | All channels are configured as inputs |
Note: Specifications are subject to change without notice.
