What is the mating connector for the Marvin Test Solutions DIO products
Home
»
Support
»
Knowledge Base Articles
Knowledge Base Article # Q200127
Summary
Marvin Test Solutions DIO card mating connector information
Login to rate article
The Marvin Test Solutions DIO cards use 68-pin female VHDCI connector with a shielded, double pin row receptacle. The mating connector is the Honda HDRA-E68MA+ (or equivalent). The plastic shell part number is HDRA-E68LGKPE.
For more information check the
Honda Web Site
.

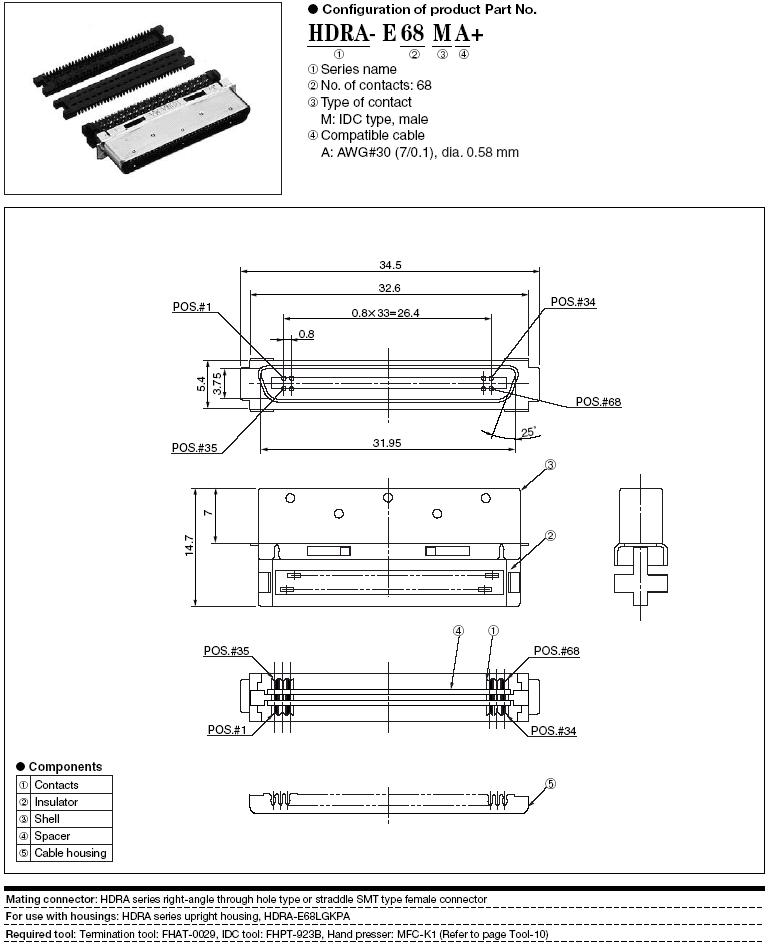

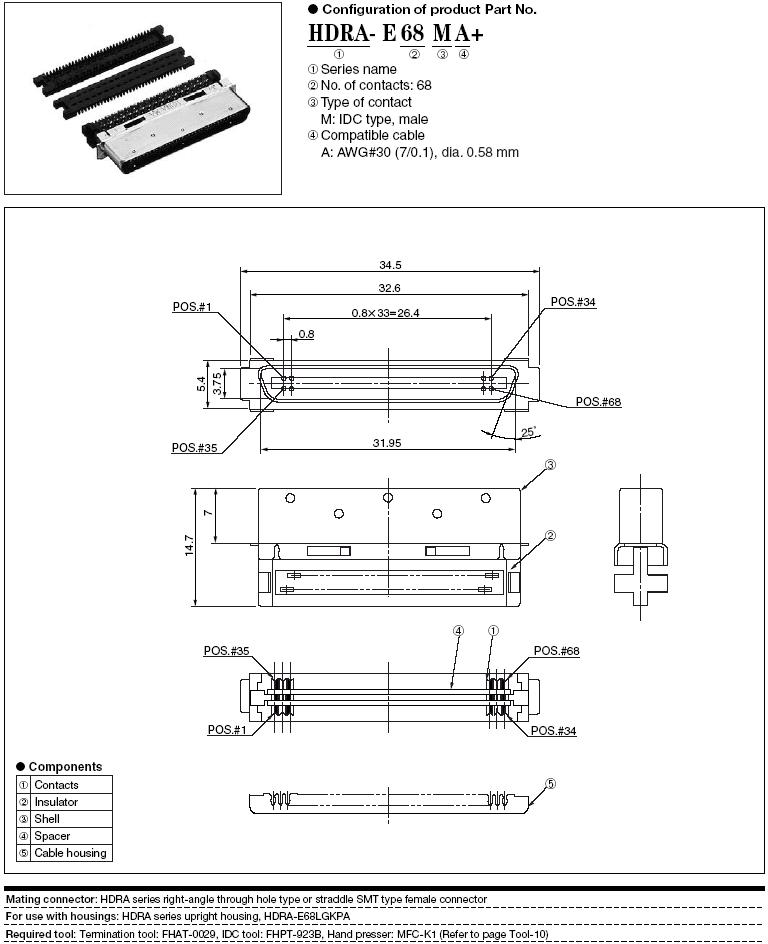

Connector Image and Information
Article Date
12/2/2008 , 5/6/2016
Keywords
DIO, Connector, GX5280, GX5281,GX5282, GX5283, GX5290, GX5292, GX5293, GX5050, GX515x, GC5050, GX5641, GX5642, GX5731, GX5732, GX5733
Login to rate article
1 ratings | 2 out of 5
