Features

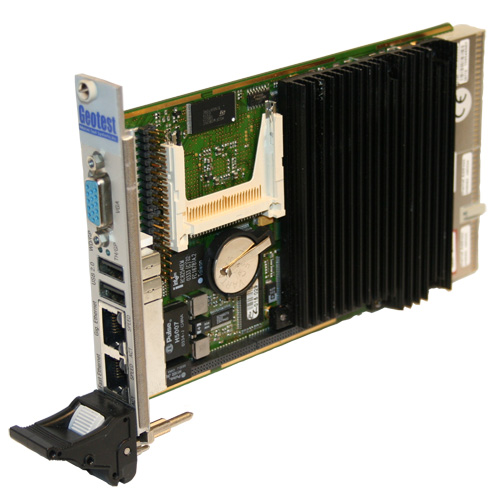

The GX7930 is a single-slot embedded PXI 3U controller for use with Geotest’s GX7300 PXI chassis. The GX7930 is available with various memory configurations and supports a broad range of peripherals. When combined with the embedded storage peripherals of the GX7300 Series chassis, it is the ideal solution for an integrated PXI chassis / controller configuration.
Configuration
The GX7930 controllers support multiple peripherals and I/O interfaces through either the PXI controller front panel or the rear I/O panel of the GX7300 Series. Connection to the DVD-RW drive and hard drive is via the controller’s internal I/O interface. The controller’s front panel I/O is provided with a factory default configuration and is fully functional in any PXI or cPCI chassis.
The GX7930 embedded system controller adheres to the PXI and cPCI specifications and is PICMG 2.0 Rev. 3.0 compliant
Applications
- GX7300 Series PXI chassis
GX7930 Series Specifications
| Processor and Memory |
|---|
| CPU | Intel Pentium® M 1.4 GHz Processor- 479-pin micro FCPGA package
|
| Memory |
| Main Memory | - Up to 1 GB soldered DDR SDRAM memory
|
| Other Memory | - 8 Kbyte EEROM for CMOS data storage (no battery
|
| External Interfaces |
|---|
| CompactPCI BUS Interface | Compliant with CompactPCI specification PICMG 2.0 R3.0- 64-bit /33 MHz master interface
- 3.3 V/5.0 V compatible (default is 5.0 V)
|
| Peripheral I/O Ports |
| COM1 and COM2 | - Dual UART, 16C550 compatible, RS-232
|
| USB Interface | Four USB 2.0 ports supporting UHCI and EHCI:- Two USB type connectors on the front panel
|
| Ethernet Interface | - 10/100/1000 MB/s Gigabit Ethernet interface based on
the Intel 82540EM (Kernal-32) Ethernet PCI bus controller:
- One 10/100 BASE-T Ehternet interface based on the Intel
82801DB controller (front and rear I/O connection)
|
| Internal Interfaces |
|---|
| VGA Interface | Built-in Intel 3D graphics accelerator for enhanced graphics
performance:- Supports resolutions of up to 2048x1536 by 8-bit at 60 Hz refresh rate
- Flexible allocation of video memory up to 64 MB
- 15-pin D-sub VGA CRT-display connector with analog video signals
|
| Compact Flash | - CompactFlash type II socket (true IDE mode)
- Supports type II CompactFlash cards and IBM Microdrive™
|
| Monitor and Control |
|---|
| Watchdog | Software configurable Watchdog generates IRQ, NMI, or
hardware reset. |
| System Monitor | LM87 hardware monitor supervision of:- System power voltages: +12 V, -12 V, +5 V, +3.3 V, and
VCORE, thermal control, fan sense (external input)
|
| Environmental |
|---|
| Mechanical | 3U, 4HP, CompactPCI/PXI compliant form factor |
Operating
Temperature | 0° C to 60° C
-40° C to 85° C (optional –extended operating range) |
Stroage
Temperature | -55° C to 85° C |
| Humidity | 93% RH at 40° C, non-condensing |
| Physical |
|---|
| Mechanical | 3U PXI |
| Dimensions | 100mm x 160 mm |
| Weight | 300g |
|
| GX7930 Series |
|---|
| Interface | Front | Rear* | Comments | | Serial (RS-232) | | 2 | | | USB | 2 | 2 | - | Ethernet (10/100
Base T) | 1 | 1 | - | Gigabit Ethernet (1000
Base T) | 1 | - | - | | VGA | 1 | - | - | | IDE | - | - | 2 (Used internally
by the chassis) |
|
|
Note: Specifications are subject to change without notice.
