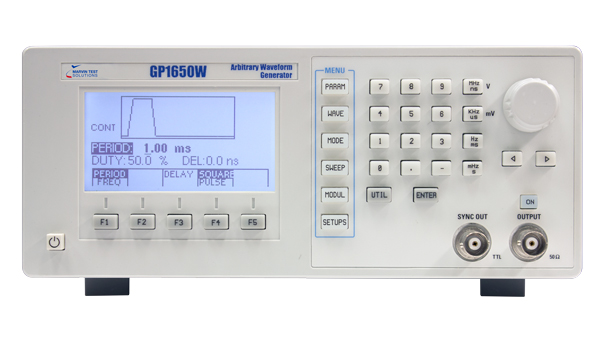

GP1650W

Home » » GP1650W   (GPIB )

Arbitrary Waveform Generator - Wavetek 175 compatible

  • 50 MHz Sampling Frequency
  • 12 Bit Resolution
  • 256K deep waveform memory
  • IEEE-488.2 and SCPI compatible
  • 10 V p-p output into 50 ohms

Description

The GP1650W arbitrary waveform generator (AWG) is a single channel programmable instrument capable of generating user defined waveforms or predefined sine, square, triangle, ramp up, ramp down and noise waveforms. The GP1650W is designed to be form, fit , function compatible with the Wavetek 175 waveform generator.

Features

The GP1650W arbitrary waveform generator supports simulation of complex waveform events. The waveforms can be executed using an internal clock with a programmable period from 20 ns to 150 sec or via an external clock. The GP1650W offers an output voltage range of up to 10 VPP into 50 Ω with a separate offset generator. Very low amplitude signals can be generated with offsets of up to ±5 V. The output can be attenuated and filtered to obtain low level spurious and noise. The output waveform can be continuous, triggered, gated or burst using an internal, external or manual trigger.

The GP1650W offers 256 K points of waveform memory and 4,096 possible levels for each address (12 bit vertical resolution), providing an array of over 1,048 million points for specifying virtually any waveform which could be mathematically generated, copied from a file, or captured by a digital oscilloscope. Waveforms can be defined point-by-point or predefined, such as sine, square, triangle, and ramp up / down. For specialized applications, waveforms can be loaded into memory and then edited as needed.

The GP1650W incorporates a menu driven front panel operation. An autoline feature makes waveform editing and generation simple. For each operational mistake, an error recognition and display sequence guides the user to the correct panel selection. The parameter values may be entered or changed using the numerical keypad or the rotary knob.

Applications

  • Video
  • Navigation
  • Radar
  • Sonar
  • Electronic Warfare Simulation
  • Converter Testing
  • Filter Design
  • Computer Peripherals
  • Data Storage
