*****Product Availability*****
This product has been discontinued.The initial release of this product was approximately 1990.Please contact the factory for availability and alternate product offerings.Please review the GX6115 Series for the latest product alternatives.Description

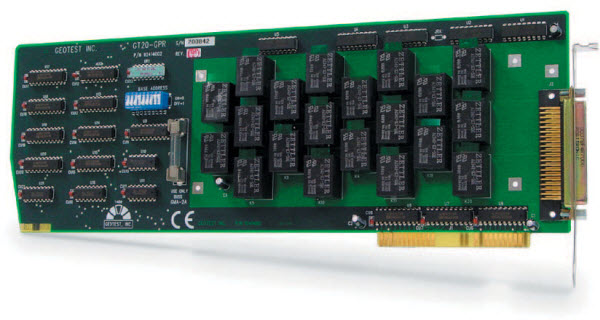

The GT6020 is a 20-channel, high-current relay board that plugs directly into any 8-bit I/O slot of an IBM compatible computer.
The GT6020 provides an additional 12 transistor-driven channels for external relays in the form of open-collector transistors providing up to 500 mA of sink current.. These outputs may be used to drive external relays for a total of 32 relay controls per each GT6020 card. A 78 pin D connector provides access to 20 sets of NC (normally closed), CO (common), and NO (normally open) contacts.
Features
The GT6020 consists of 20 individual relays and 12 open collector outputs. A 78-pin D connector provides access to 20 sets of NC (normally closed), CO (common), and NO (normally open) contacts. In addition, the GT6020 provides 12 external relay drivers in the form of open-collector transistors providing up to 500 mA of sink current.
Programming and Software
The board is supplied a 16 and 32-bit DLL driver. Various interface files provide access to the DLL from programming tools and languages such as ATEasy, LabView, C/C++, Microsoft Visual Basic®, Delphi, and more. The available virtual panel can be used to interactively adjust and control the instrument from a window that displays the current instrument settings and measurements.
On-Line help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
Applications
- Automatic Test Equipment (ATE)
- Power switching
- Alarm outputs
- Data acquisition Systems
- Process control systems
GT6020 Specifications
| Contact Specifications |
|---|
| Relay Format | 20 SPDT Form C |
| Relay Contact Resistance | < 0.1 Ω (max) |
| Contact Life Rating | at low level 10 x 106 (typ)
28 VDC @ 0.5 A 5 x 105 (typ) |
| Switchable Voltage | 120 VAC / 150 VDC |
| Switchable Current | 3 A |
| Contact Carry Current | 5 A |
| Operate Time | 10 ms |
| Maximum Release Time | 5 ms |
| Driver Outputs |
|---|
| Driver Channels | 12 |
| Current | 500 mA sink |
| Power Requirements |
|---|
| Operating Voltage | +5 VDC |
| Power Consumption | 1.75 A (max) |
| Environmental |
|---|
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Vibration | 10 G at 500 Hz |
| Shock ½ Sine | 20 g for 6 ms |
| Physical |
|---|
| Size | 13.25" x 4.875" |
| Weight | 1000 g |
Note: Specifications are subject to change without notice.
Downloads for GT6020
GT6020DS.pdf
Feb 17, 2023
version: A
139.28 KB
GTSW.exe
Dec 15, 2003
version: 2.90
955.51 KB
GTSW.pdf
Apr 16, 2002
555.76 KB
GT6020UG.pdf
Jun 5, 2000
223.99 KB
GTSW.hlp
Jul 3, 1997
1.08 MB
GTSW_LV.zip
May 12, 2004
646.48 KB
