Description

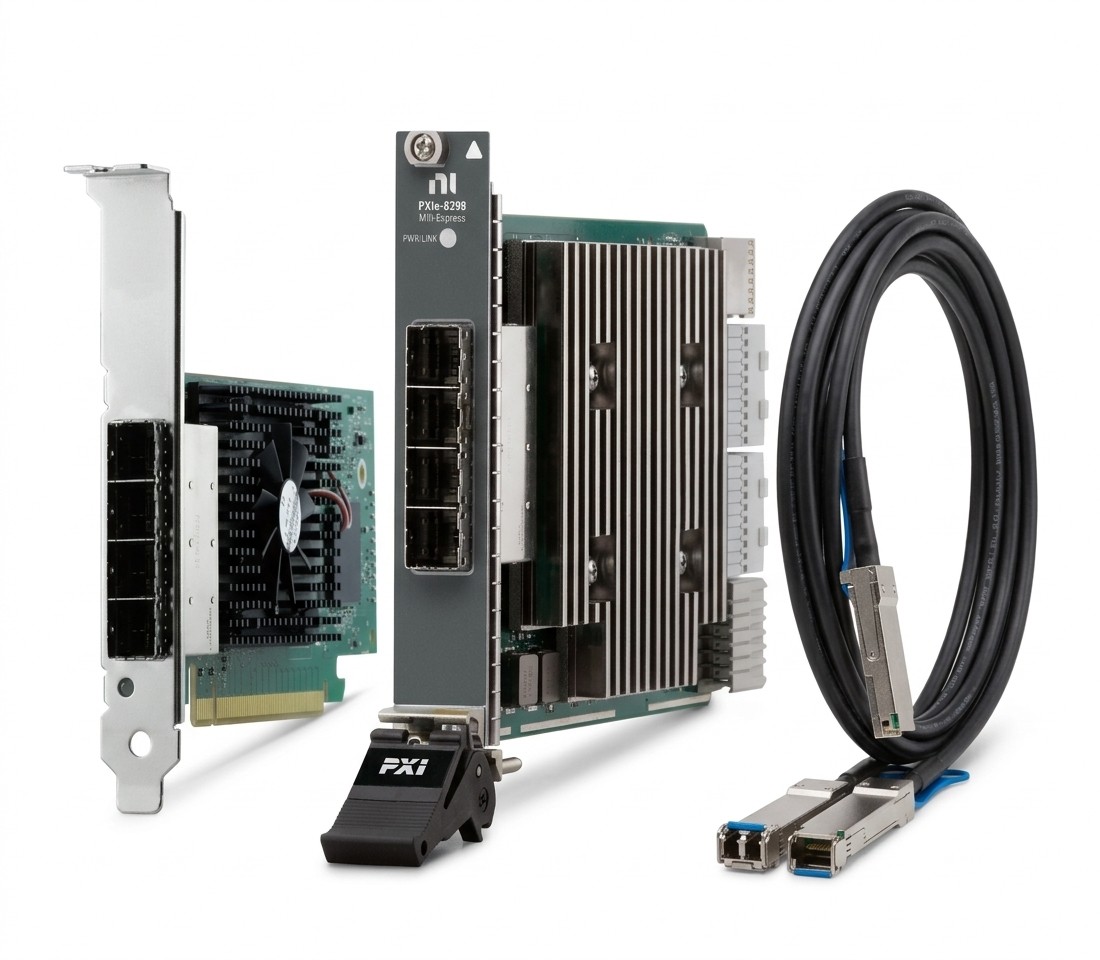

The MXIe PXI-Express Bus Expander allows for direct control of PXI-Express systems from any PCI Express slot in a desktop computer or server. MXIe-Express configurations supporting x16 (5GB/s) PCI-Express lane to remotely control one PXIExpress chassis. The MXIe-Express technology utilizes a high bandwidth link that is transparent to software applications and drivers, providing the ability to use high performance desktop computers or servers to control PXI-Express systems.
Features
Since PXI-Express is based on the industry-standard PCI-Express bus, the MXIe-Express Bus Expanders provide a transparent link where all PXI and PXI-Express modules appear to the user as if they were PCI or PCI-Express boards within the computer itself. However, with PXI technology, users benefit from an increased number of slots, power and cooling per slot, module selection, and synchronization features. The MXIe-Express employs a high speed serial link to control the PXI-Express chassis. Interfacing cables for the MXIe-Express are available in 3 meter length.
The MXIe-Express is available in x16 configuration supports a sustained data throughput rate of 5GB/s
Applications
- Remote control of PXIe chassis
- Remote control of cPCIe chassis
MXIe-x16 Series Specifications
| Power Requirements |
|---|
| +3.3 V | PXIe (x4): 750 mA (typ); 1.1 A (max) |
| +5 V | PXIe (x4): 100 mA (typ); 200 mA (max) |
| +5 V aux | PXIe (x4):200mA (typ); 500mA (max) |
| +12 V | PXIe (x4): 1100 mA (typ); 2300 mA (max) |
| +3.3 V | PCIe (x4): 1.688A (typ); 1.9 A (max) |
| +3.3 V aux | PCIe (x4): 40mA (typ); 146mA (max) |
| +12 V | PXCe (x4): 731 mA (typ); 1.6 A (max) |
| Environmental Temperature Range |
|---|
| Operating | 0 °C to +55 °C |
| Storage | -40 °C to +70 °C |
| Relative Humidity |
|---|
| Operating | 10 to 90%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Shock and Vibration |
|---|
| Operational Shock | 30 g peak, half-sine, 11 ms pulse
(Tested in accordance with IEC-60068-2-27. Test profile developed in accordance with MIL-PRF-28800F.) |
| Random Vibration (operating) | 5 to 500 Hz, 0.3 G rms |
| Random Vibration (non-operating) | 5 to 500 Hz, 2.4 G rms
(Tested in accordance with IEC 600060-2-64. Non-operating profile exceeds the requirements of MIL-PRF 28800F, Class 3.) |
| Dimensions |
|---|
| PXI-Express I/F | 3U PXI slot, 10.7 x 17.5 cm (4.4" x 6.9") |
| PCI-Express | 6.89 x 16.7 cm (2.71" x 6.6") |
| General |
|---|
| Maximum Cable Length | 3 meters |
| Compatibility | Fully compatible with PXI Express Hardware Specification 1.0 and PICMG CompactPCI Express EXP.0 R1.0 Specifications. |
Note: Specifications are subject to change without notice.
Downloads for MXIe-x16 Series
MXIe-x16DS.pdf
Sep 28, 2026
version: A
186.93 KB
