Description

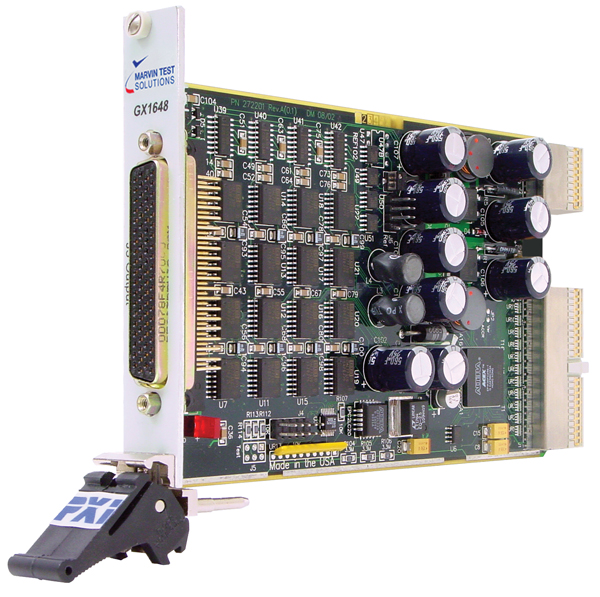

The GX1648 is a 3U PXI digital to analog output board is designed specifically for applications where multiple analog outputs are required. The GX1648 offers precision signal sourcing performance and quality at an economical price.
Features
The GX1648 is organized as 4 groups of 16 channels. Each group is programmed and triggered independently. All groups can also be updated simultaneously. All channels provide single-ended voltage and are automatically at zero volts DC after reset to prevent inadvertent damage to external equipment.
Programming and Software
The board is supplied with the GXAO software package that includes a virtual instrument panel, a Windows 32/64-bit DLL driver library and documentation. The virtual panel can be used to interactively program and control the instrument from a window that displays the instrument’s settings and status. In addition, interface files are provided to support programming tools and languages such as ATEasy, LabView, LabView/Real-Time, C/C++, Microsoft Visual Basic®, Delphi, and Pascal. Help file and PDF User's Guide provides documentation that includes instructions for installing, using and programming the board.
A separate software package -
GtLinux - provides support for Linux 32/64 operating systems.
Applications
- Discrete avionics testing
- Automatic Test Equipment (ATE)
- Multiple DC source
GX1648 Specifications
Number of Output Channels | 64, 4 groups of 16 channels |
Output Voltage Range | -10 V to +10 V |
Number of Ranges | 4 (each group) |
Selectable Output Voltage Ranges | 0 - 10 V, ±10 V 0 - 5 V, ±5 V |
Resolution | 12-bit |
Accuracy | 3 mV ± 1 LSB |
Slew Rate | 0.5 V/µs |
Settling Time | 50 µs to 0.1% |
Maximum Current per Channel | 10 mA |
Power Supply Current | 3.3V, 100 mA (max) 5V, 2A typical, 6A (max) 12V, 10 mA (max) |
Operating Temperature | 0 °C to +55 °C |
Storage Temperature | -20 °C to +70 °C |
Size | 3U PXI |
Weight | 12 oz |
Connector | 78-pin D-Type |
Calibration | One time factory calibration, periodic calibration not required |
Note: Specifications are subject to change without notice.
Knowledge Base Articles pertaining to GX1648
This article demonstrates how to interface with MATLAB from ATEASY with an example for using the GXAO software package used to control and interface the GX1648.
Read more...
List of changes, bug fixes and new features for ATEasy 4.0 build 92 released on Apr, 02, 2004
Read more...
Downloads for GX1648
Datasheet
GX1648DS.pdf
Feb 23, 2023
version: C
339.85 KB
Setup/Package
GxAo.exe
Feb 20, 2024
version: 1.4.4.1
31.45 MB
Most recent Setup/Package
This Setup / Package file contains all necessary files (including user's guide, help, etc).
Expand
to view And download individual files included in the setup.
Setup/Package
GxAoReadMe.txt
Feb 19, 2024
version: 1.4.4.1
30.38 KB
Most recent Setup/Package
Manual
GxAoUG.pdf
Aug 19, 2024
version: 1.4.5.0
2.18 MB
On-Line Help
GxAo.chm
Aug 19, 2024
version: 1.4.5.0
2.51 MB
Other
GX1648_Vol.pdf
Apr 10, 2017
347.67 KB
