Description

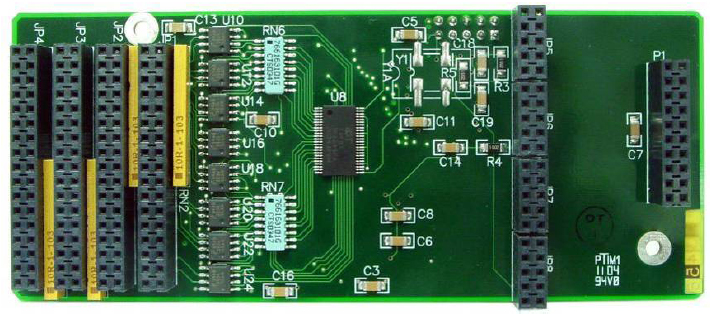

The GX5712 bi-directional I/O module converts 16 differential RS-422 inputs to TTL outputs or 16 TTL inputs to 16 differential RS-422 outputs. One module can be installed on the GX5733 PXI card or up to three modules can be installed on the GX5731 PXI card.
GX5712 Specifications
| Output Levels | TTL or RS-422 (differential) |
| Input Levels | RS-422 (differential) or TTL |
| Number of Channels | 16 (all input or all output) |
| Power | Supplied by GX5733 |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +85 °C |
| Size | 5" x 2.1" |
| Weight | 6 oz |
Note: Specifications are subject to change without notice.
