Features

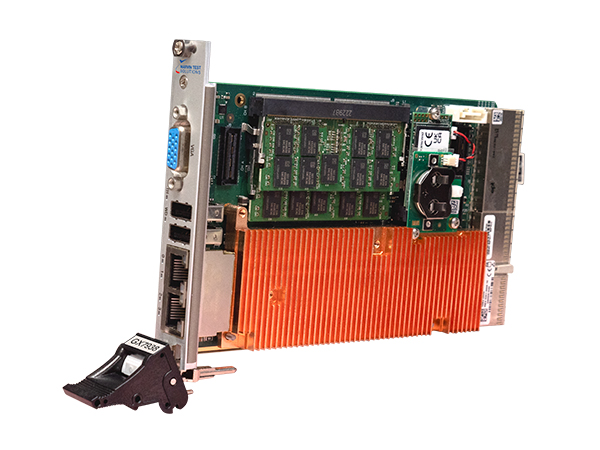

The GX7938 is a single-slot embedded cPCI 3U controller for use with Marvin Test Solutions' GX7300 and GX7800 Series PXI chassis. The GX7938 features an 8th generation 2.7 GHz 6-Core Xeon processor, 32 GB of DDR4 memory and a 1 TB SSD, making this the ideal solution for an integrated, high performance PXI chassis / controller configuration.
Configuration
The GX7938 controller supports multiple peripherals and I/O interfaces through the controller’s front panel. The controller’s front panel I/O is provided with (2) Gigabit Ethernet connections, (2) USB 2.0 ports and a VGA video connection ideal for operation in a PXI or cPCI chassis.
The GX7938 embedded system controller is compliant with the CompactPCI Core Specification PICMG 2.0 Rev. 3.0, and is compatible with the PXI-1 Rev. 2.2 specification.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control
- Production Test
- Industrial Systems
- Portable Systems
GX7938 Specifications
| Processor and Memory |
|---|
| CPU | Intel® Core® i i7-3615QE, Quad Core 2.3 GHz Processor, 12 MB Cache |
| Main Memory | 32 GB DDR4 SDRAM memory |
| Other Memory | 32 MB BIOS flash
64 kbit EEPROM |
| Operating System |
|---|
| Windows | Win 11 Pro (64 bit) |
| cPCI Interface |
|---|
| CompactPCI Bus Interface | 32-bit, 66 MHz
V(I/O): 3.3 V or +5 V (universal signaling support)
Compliant with CompactPCI specification PICMG 2.0 R3.0 (core)
Compliant with CompactPCI specification PICMG 2.1 R2.0 (hot swap) |
| Peripheral I/O Ports |
|---|
| USB Interface | (2) USB 2.0 ports - front panel |
| Ethernet Interface | (2) 10/100/1000 MB/s Ethernet interface ports - front panel |
| Graphics Interface |
|---|
| VGA Interface | (1) 15-pin D-sub VGA connector - front panel |
| Mass Storage |
|---|
| SATA M.2 | 1 TB Solid State Drive (SSD), internal |
| Operating System |
|---|
| Windows | Win 11 Pro (64 bit) |
| Supply Voltage / Power Consumption |
|---|
| +5 V | 8.7 A |
| +3.3 V | 2.7 A |
| Environmental and Mechanical |
|---|
| Dimensions | 3U, 4HP, CompactPCI/PXI compliant form factor |
| Weight | 320 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity (Operating & Storage) | 93% RH @ 40°C, non-condensing |
| Shock | IEC60068-2-27, -29 |
| Vibration (Sinusoidal) | IEC60068-2-6 |
Note: Specifications are subject to change without notice.
