Features

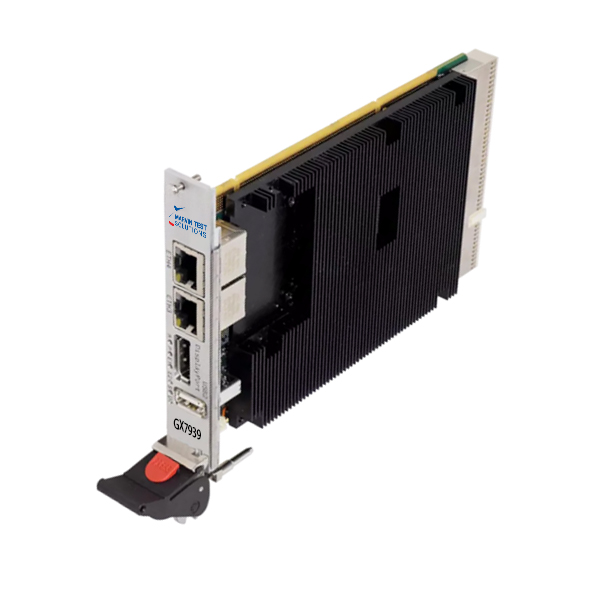

The GX7939 is a single-slot embedded cPCI 3U controller for use with Marvin Test Solutions' GX7300 and GX7800 Series PXI chassis. The GX7939 features an 11th generation 2.8 GHz 4-Core i7 processor, 32 GB of DDR4 memory and a 1 TB SSD, making this the ideal solution for an integrated, high performance PXI chassis / controller configuration.
Configuration
The GX7939 controller supports multiple peripherals and I/O interfaces through the controller’s front panel. The controller’s front panel I/O is provided with (2) Gigabit Ethernet connections, (1) USB 2.0 port and (1) DisplayPort video connection ideal for operation in PXI or cPCI chassis.
The GX7939 embedded system controller is compliant with the CompactPCI Core Specification PICMG 2.1 Rev. 2.0, and is compatible with the PXI-1 Rev. 2.2 specification.
Applications
- Automatic Test Equipment (ATE)
- Data Acquisition
- Process Control
- Production Test
- Industrial Systems
- Portable Systems
GX7939 Specifications
| Processor and Memory |
|---|
| CPU | Intel® Core® i i7-1185GRE Quad Core 2.8 GHz Processor, 12 MB cache |
| Main Memory | 32 GB DDR4 DRAM memory |
| Other Memory | 64 MB of BIOS flash
8 kB EEPROM |
| Operating System |
|---|
| Windows | Win 11 Pro (64 bit) |
| cPCI Interface |
|---|
| CompactPCI Bus Interface | 32-bit, 33/66 MHz
V(I/O): 3.3 V or +5 V (universal signal support)
Compliant with CompactPCI specification PICMG 2.1 R 2.0 |
| Peripheral I/O Ports |
|---|
| USB Interface | (1) USB 2.0 port - front panel |
| Ethernet Interface | (2) 10/100/1000 MB/s Ethernet interface ports - front panel |
| Graphics Interface |
|---|
| DisplayPort | (1) DisplayPort v1.4 interface - front panel |
| Mass Storage |
|---|
| SATA M.2 | 1 TB Solid State Drive (SSD), internal |
| Operating System |
|---|
| Windows | Win 11 Pro (64 bit) |
| Supply Voltage / Power Consumption |
|---|
| +5 V | 2.9 A (typ) |
| +3.3 V | 4.3 A |
| Environmental and Mechanical |
|---|
| Dimensions | 3U, 4HP, CompactPCI/PXI compliant form factor |
| Weight | 455 g |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity (Operating & Storage) | 5% to 95% RH max, non-condensing |
| Shock | 20 g, 11 ms, 1/2 sine |
| Vibration (Sinusoidal) | 0.38 mm pk at 5 Hz to 36 Hz
2 g at 36 Hz to 2 kHz |
Note: Specifications are subject to change without notice.
